‘Optimum performance’ mobile stockpiling solutions offered by MSC NZ

Sponsored

Utilising conveying solutions for effective material handling equals substantial costs per ton savings

You do the math; compare efficient conveyor systems to using loaders and haul trucks and the result is clear: there are major cost savings to be made per day, week, month and year when conveyors are utilised – rather than loaders and haul trucks – to move and stockpile material.

Terex conveyors bring many benefits to operators across a wide range of applications. The units can be fed by either large primary crushers, a secondary crusher, mobile screens and also wheeled loaders.

MSC’s material handling range of equipment offers a wide range of tracked stackers and feeder conveyors to suit your specific material handling requirements.

Conveying benefits

• Ability to cost-effectively transfer material directly from crushers and screeners into large volume stockpiles
• Improved product quality; eliminating multiple handling of material and preventing the compaction and contamination which typically occurs when using loaders and trucks
• Reduced maintenance and operating costs; Conveyors have minimal maintenance, running costs and are self-operating. In contrast, loaders cost much more to run and maintain, and require a full-time operator to clear processed products from under the screen/crusher belts
• Greater stockpiling capacity; the ability to create much larger and more efficient conical stockpiles than can be achieved with a loader
• Maximum materials processed; stacking conveyors operate at 100% efficiency during every hour of operation. In addition, with operators freed up to keep crushers, screens and/or shredders continually fed, materials processing capacity is maximised
• Conveyors increase the amount of material that can be stockpiled without loader or machine movements
• Tracked units allow excellent onsite manoeuvrability
• Health & Safety; the use of conveyors minimises traffic on sites, reducing site accidents involving manoeuvring or operating of vehicles
• Stacking conveyors offer onsite environmental impact benefits: reduced noise, dust and emissions levels and removing the need for continuous movement across site by wheeled loaders

Mobile Screening and Crushing NZ are proud distributors of Terex conveying systems throughout New Zealand. Established in 1995, MSC’s 25 years in supplying equipment to the extractive and recycling industries enables them to recommend with confidence the most suitable conveying solution for your requirements.

The Terex Ecotec range of conveying systems offers self-powered tracked options: TSC 65T (65ft) and TSC 80T (80ft) with conveying capacities of 400tph; along with newly introduced models: TSC 100T (100ft), TRC 75, TFC 75 and TFC 75L and the HLF75 high level feeder and LLF75 low level feeder.

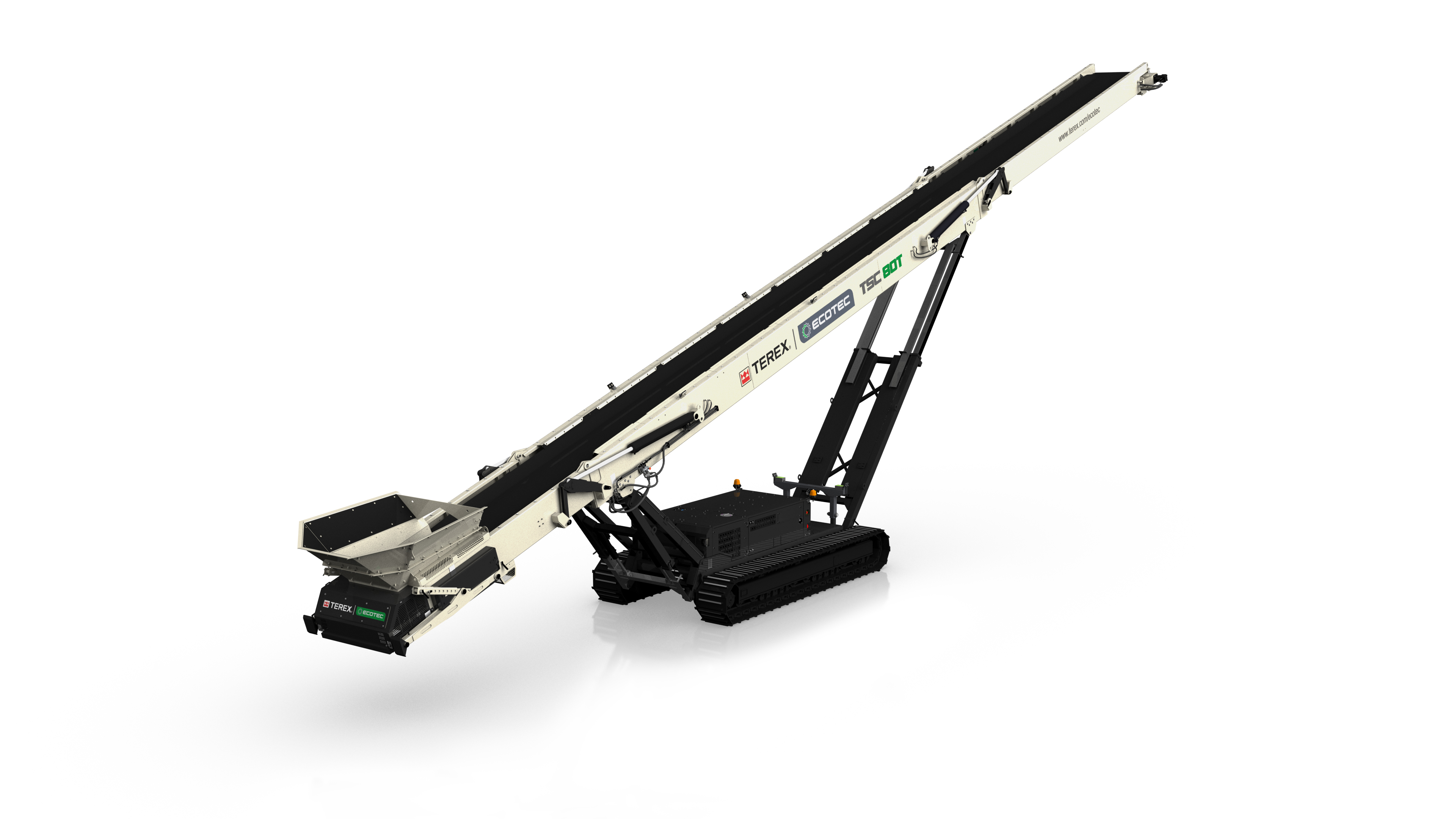

Product focus – Ecotec TSC 80T Conveyor

The TSC 80T conveyor is designed to work in conjunction with screens and crushers increasing stockpile capacity whilst reducing onsite material handling.

The TSC 80T is a self-powered tracked stockpiler with impressive features and conveying capacities. The intelligent design allows the machine to be folded small enough to fit inside a 40ft container and be shipped cost effectively NZ wide.

Hydraulic angle adjustment and belt speed adjustment ensure optimum performance in every application. A maximum discharge height of 10.5m (34' 6") and capacities of up to 400tph position the TSC 80T as a leader in the industry.

Technical specifications:

• weight: 16.000kg
• conveyor length: 23,5m
• belt width: 1,05m
• maximum discharge height: 10,1m
• capacity: 400 t/h
• belt scales – optional

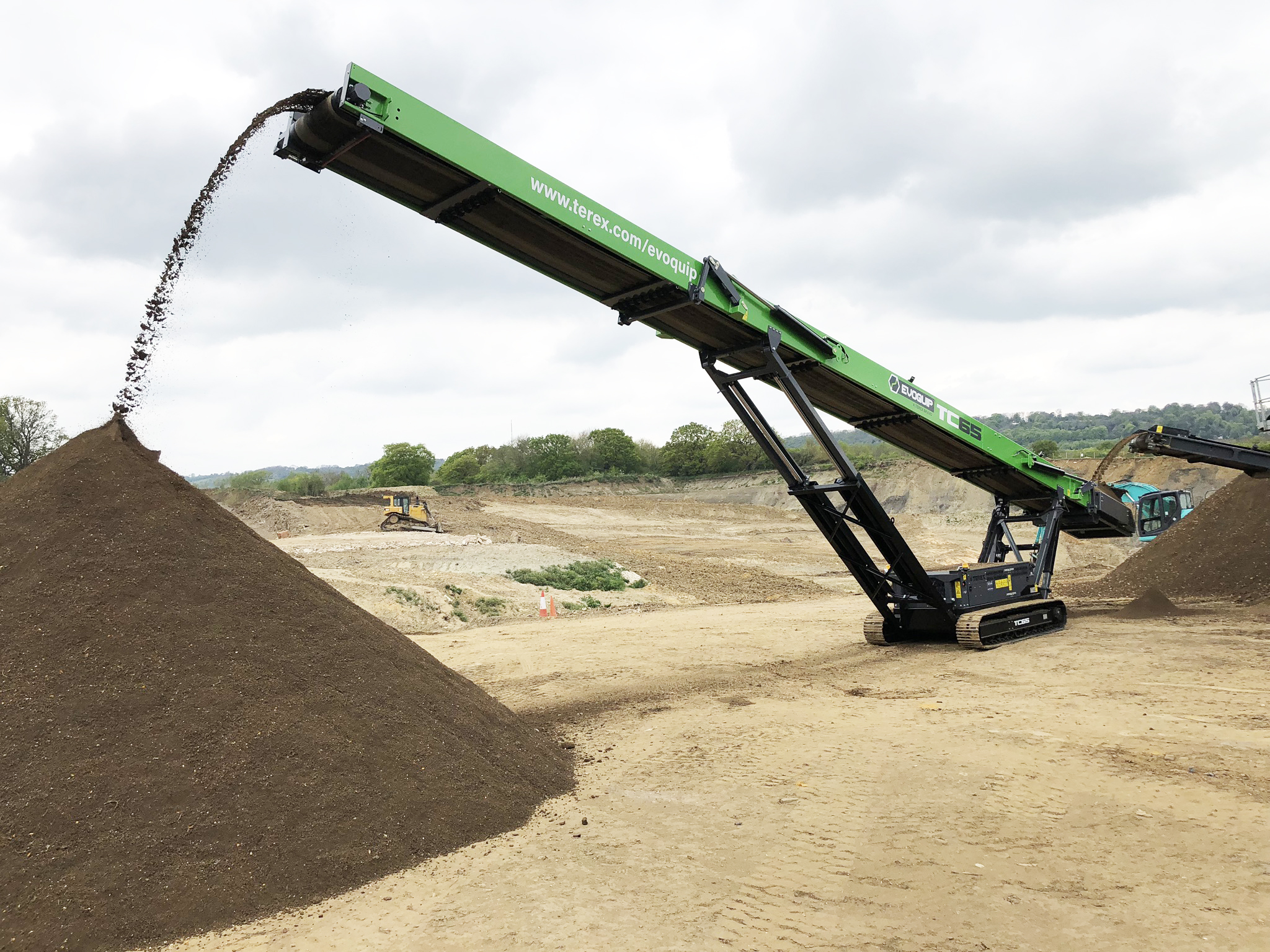

Product focus – Terex EvoQuip TC65 Conveyor

Technical specifications:

• conveyor length: 20m (65'7")
• belt width: 1050mm (42")
• conveyor drive: Hydraulic 800cc
• discharge height: 8.7m (28'6") @ 24°
• max discharge height: 10m (32'10") @ 28°
• hydraulic folding head section
• hydraulic oil cooler as standard
• belt scales – optional

Managing optimal flow with addition of belt scales

• enable you to monitor your production without slowing it down
• ensure precise feeding of process materials and maintain product quality

Reliable & efficient material handling and stockpiling solutions – NZ wide

• Stock for sale and hire

Contact MSC to discuss how Terex Conveyors can benefit your operations.

Although Auckland based, MSC operates NZ wide in both sales and hire.

Sales :
0274 939 098 | andy@mobilescreening.co.nz
0272 255 838 | dan@mobilescreening.co.nz

Hire :
0272 255 525 | matt@mobilescreening.co.nz

P 0800 MSC LTD

#MobileScreeningNZ #Conveying #Stockpilers #Stacking

For more details visit MSC’s newly launched website: www.mobilescreening.co.nz
